Digital instrument clusters for BMW & Mercedes-Benz
Replace the mechanical gauge cluster with a 12.3" full-LCD digital cockpit — without losing a single factory function. Our clusters keep the original mainboard in the loop, so mileage, warning lights, service data and driver-assistance displays all stay exactly as the factory intended, while the panel itself gains CarPlay, Android Auto and fully configurable dial themes.
All factory data stays intact
The cluster synchronises with the factory mainboard — no coding, no configuration, no error lights.
- Retains the factory mainboard and synchronises all factory cluster data precisely - no configuration required.
- CarPlay and Android Auto built in as standard.
- Works with or without the factory fibre-optic (MOST) system - one unit covers both.
- Supports the factory head-up display (HUD).
- HDMI input supported (requires an external HDMI box used with an Android head unit).

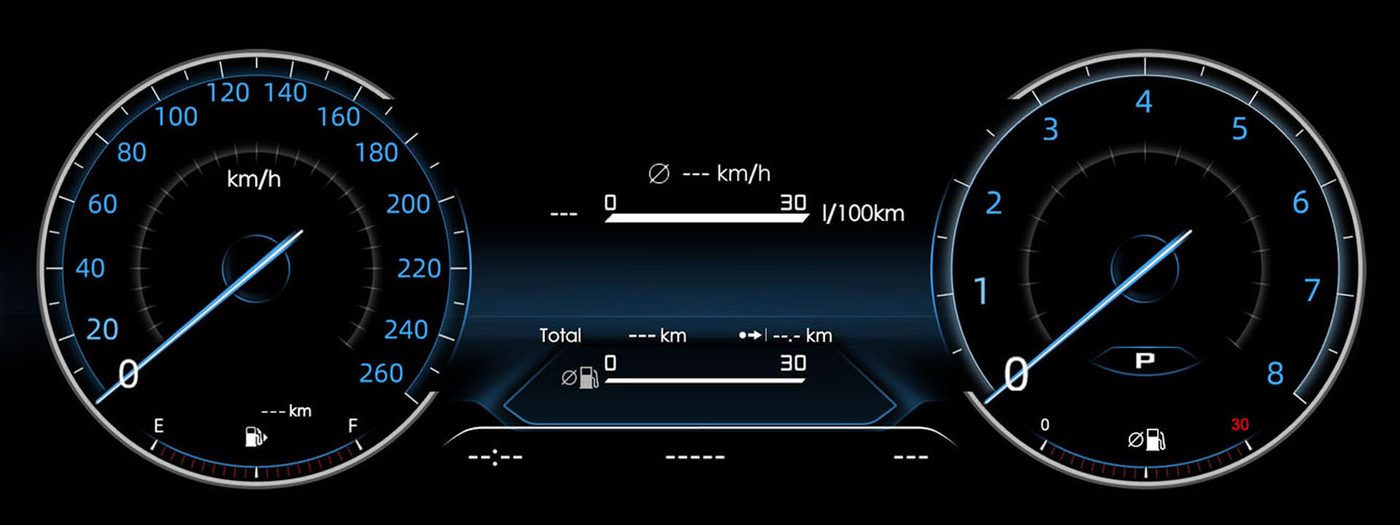

- 13 selectable languages, 16 UI themes and 21 dial colour / background combinations.
- Factory mileage, fuel and temperature units can be set by the user.
- Selectable diesel or petrol rev display.
- Factory BC button retained: short press moves to the next item, long press confirms, double press returns to the main screen.
- Factory protocol selection: F-series (F10 / F07 / F15 / F02 / F20 / F30 / F82 - F25 selects F10) and E-series (E60 / E90 / E71 / E89).
- Hybrid vehicles are not supported at present (battery level cannot be displayed).

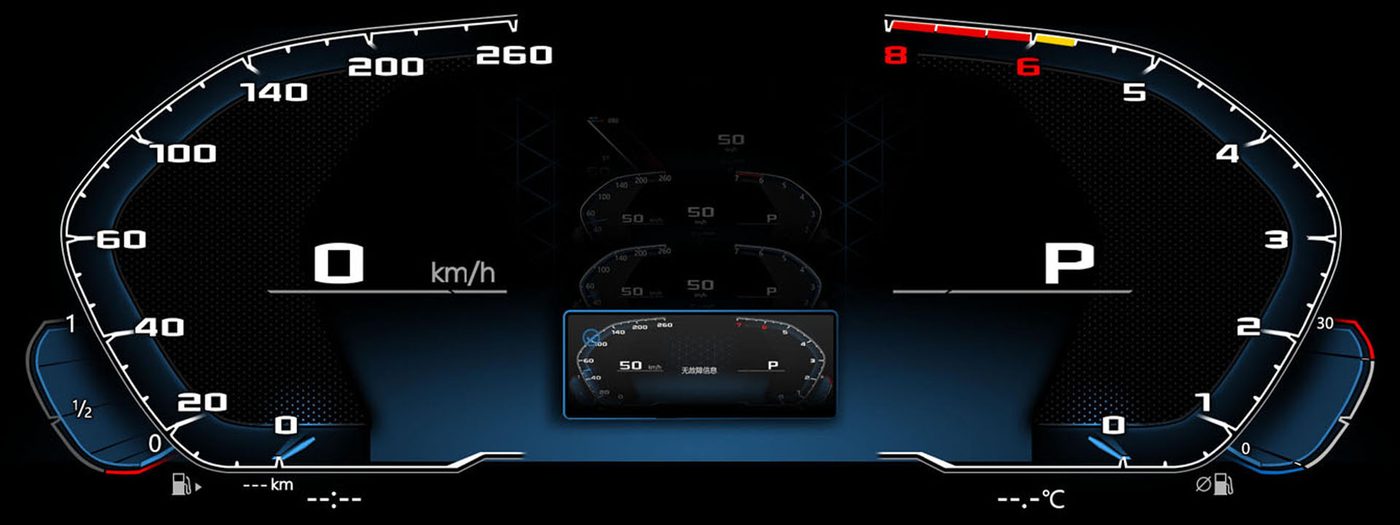

- Factory radio / media display after installation: no fibre and no HUD - displayed; fibre without HUD - not displayed; fibre with HUD - shown via the HUD.
- Service information: with fibre-optic the cluster does not display service data (the factory centre screen keeps showing it); without fibre-optic it shows oil, brake fluid and brake pad data only.
- Factory ACC adaptive cruise control is retained.

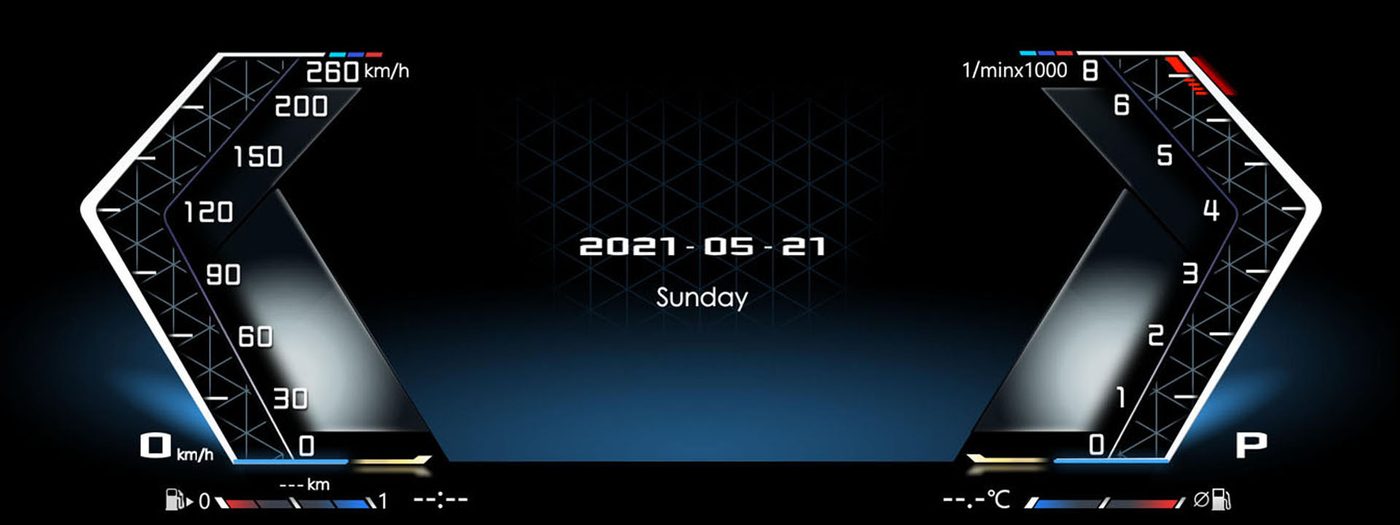

Real product photos & UI
Digital cluster for BMW
One cluster family covers E-series and F-series: E60, E70, E89 and the F01–F36 range.

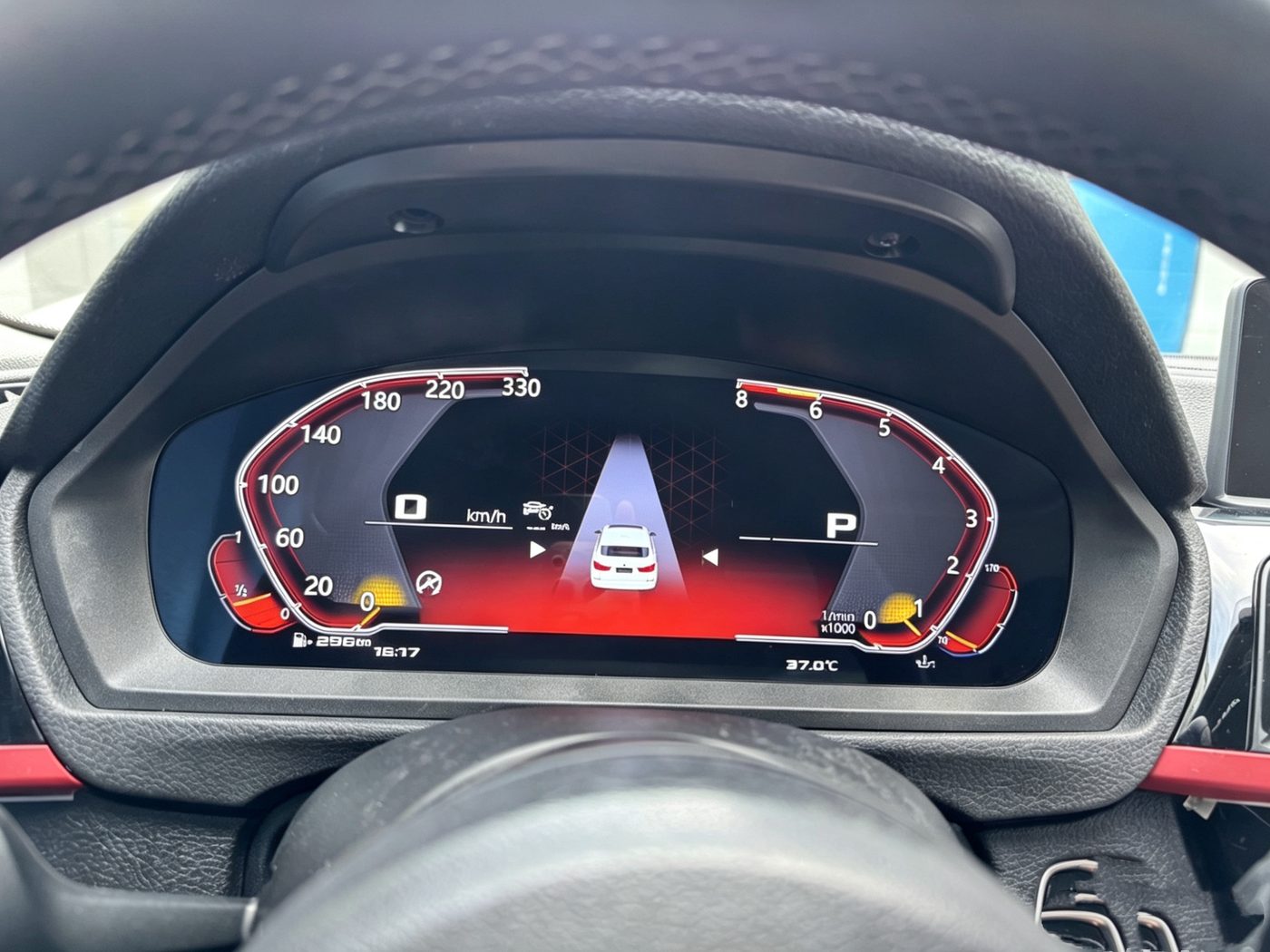

BMW 3 Series F30 / F31 / F34 / F35, 4 Series F32 / F33 / F36, M3 F80 (2013-2017)
NBT / EVO · 12.3" · Integrated cluster
- OS Linux 4.9
- CPU 4-core A53 1.2 GHz
- RAM DDR3L 4 GB
- Storage eMMC 8 GB
- Resolution 1920x720
- Screen 12.3"
- Fits both LHD and RHD
Supports the factory HUD. Where the car has no HUD, the HUD function is simply not present. Screen mirroring over HDMI requires an external HDMI box used together with an Android head unit.

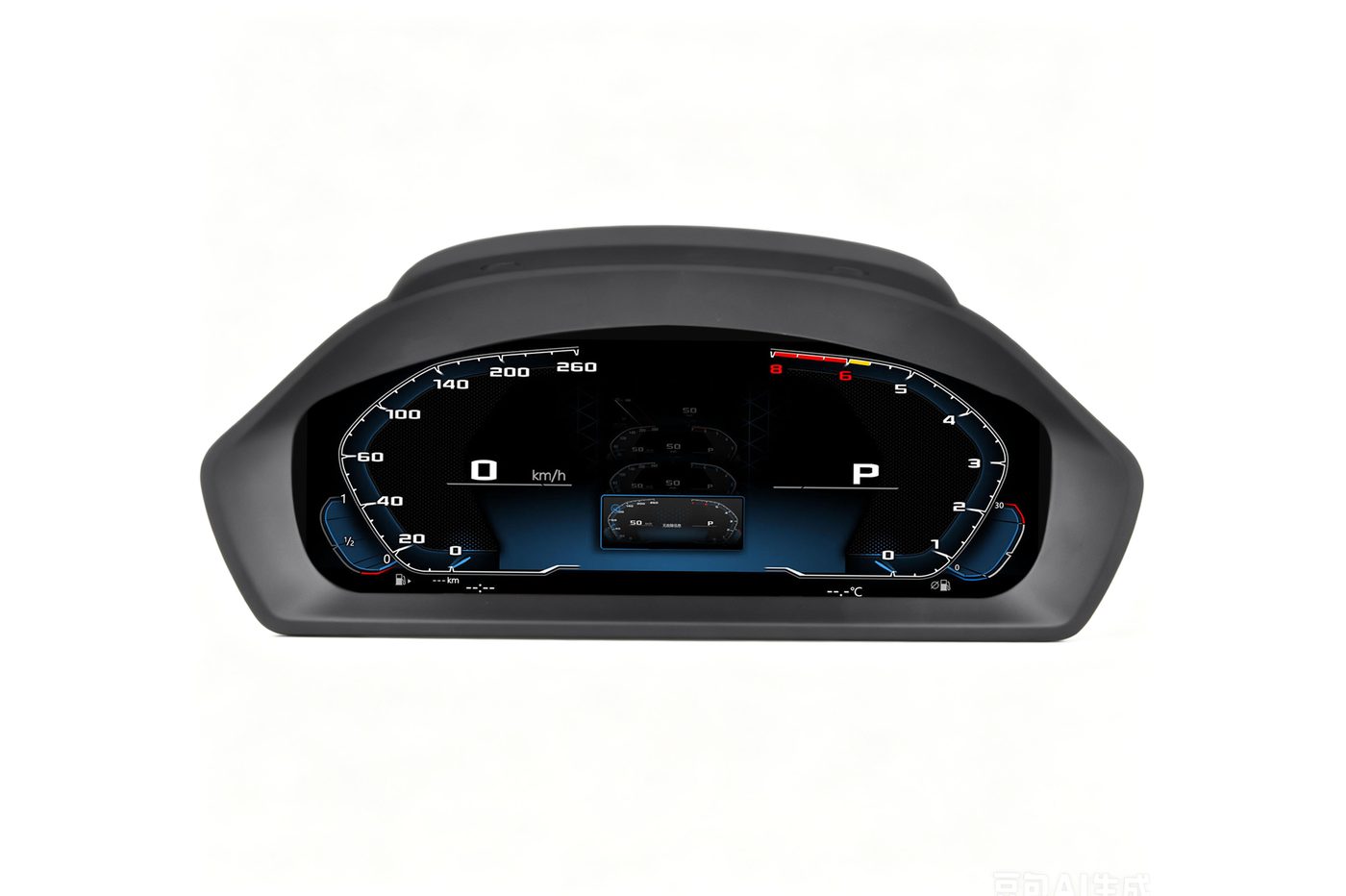

Part no. AL-8613

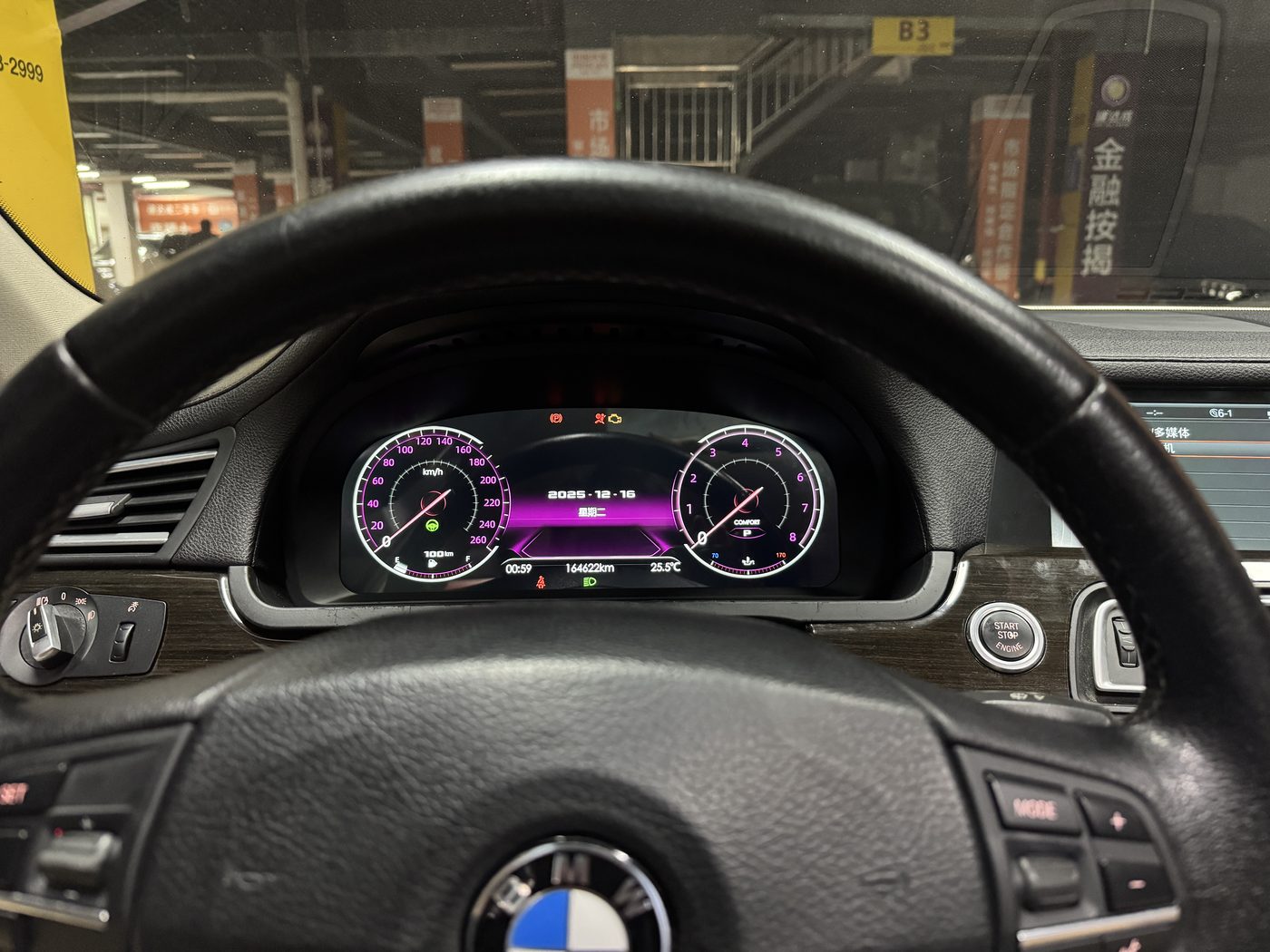

BMW 5 Series F10 / F11 / F18 (2010-2017), 5 Series GT F07 (2009-2016), 6 Series F06 / F12 / F13 (2011-2017), 7 Series F01 / F02 / F03 (2009-2015), X3 F25 / X4 F26 (2011-2017), X5 F15 / X6 F16 (2014-2018)
CIC / NBT / EVO · 12.3" · Non-integrated cluster
- Dimensions 420 x 230 x 215 mm
- 2.6 kg per unit
On an F10 without a factory HUD the unit can be installed in the factory HUD recess. Where a HUD is fitted, it mounts above the passenger-side glovebox without reducing storage space. HUD cable optional.

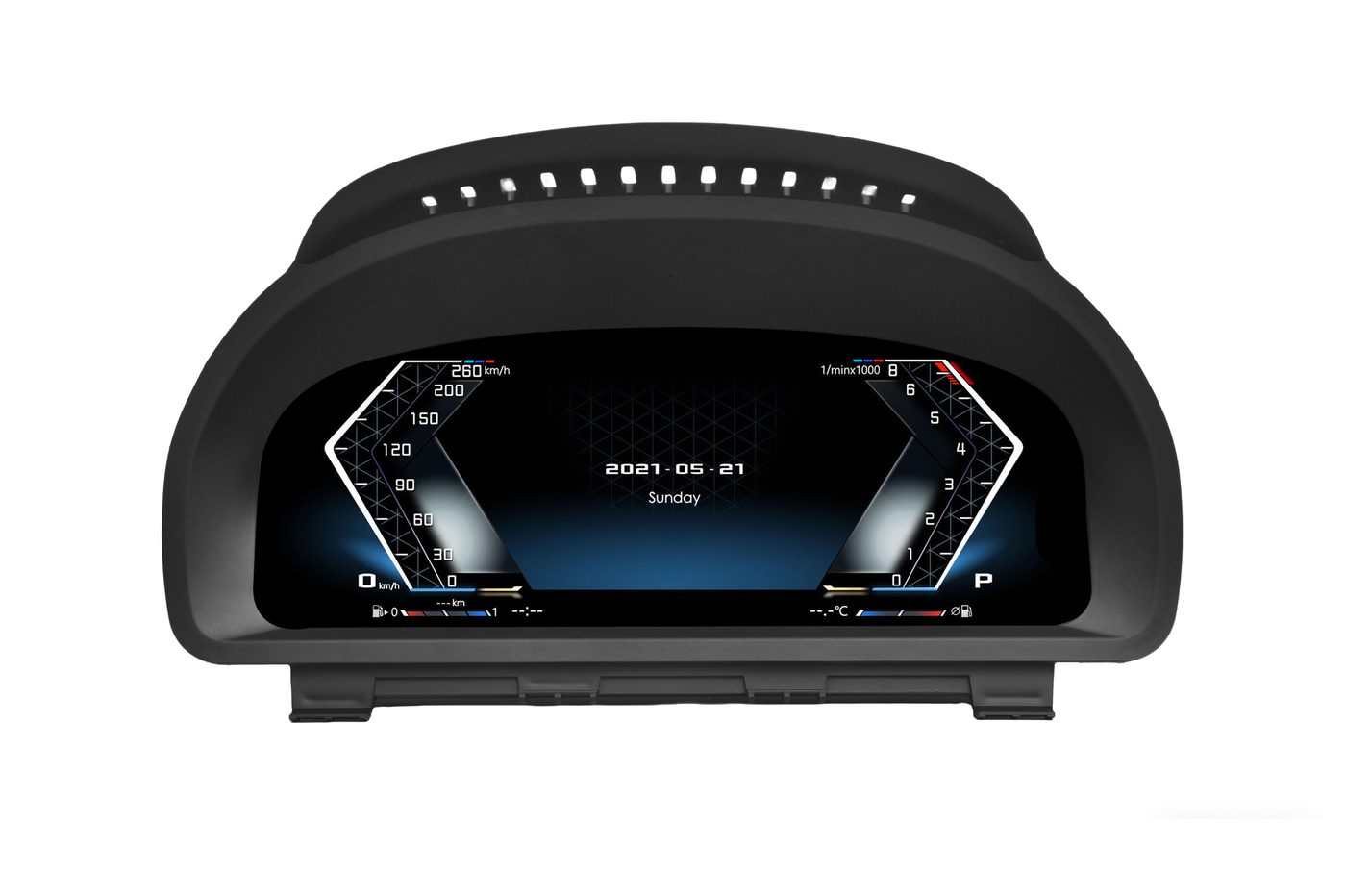

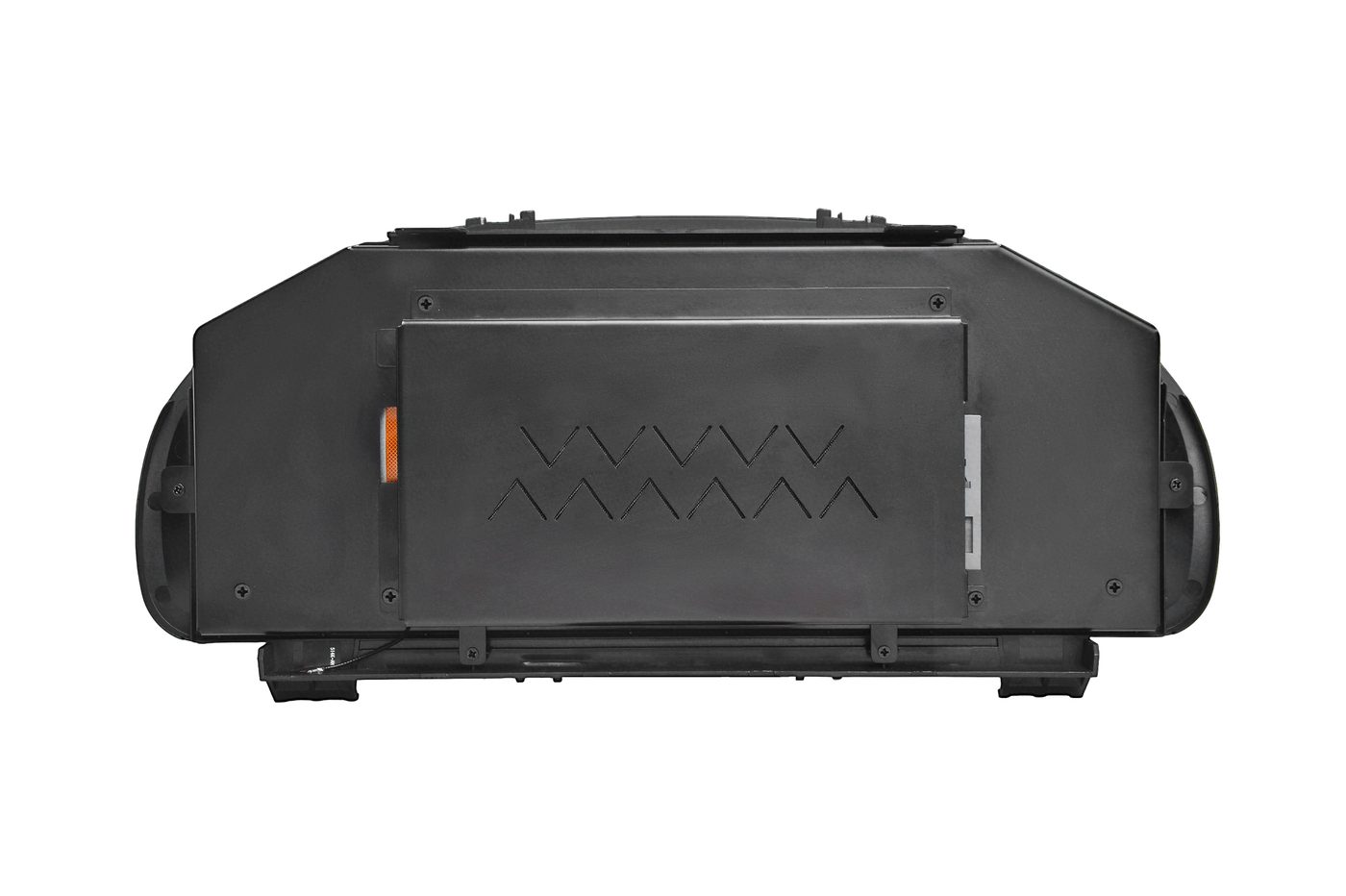

Part no. AL-8618

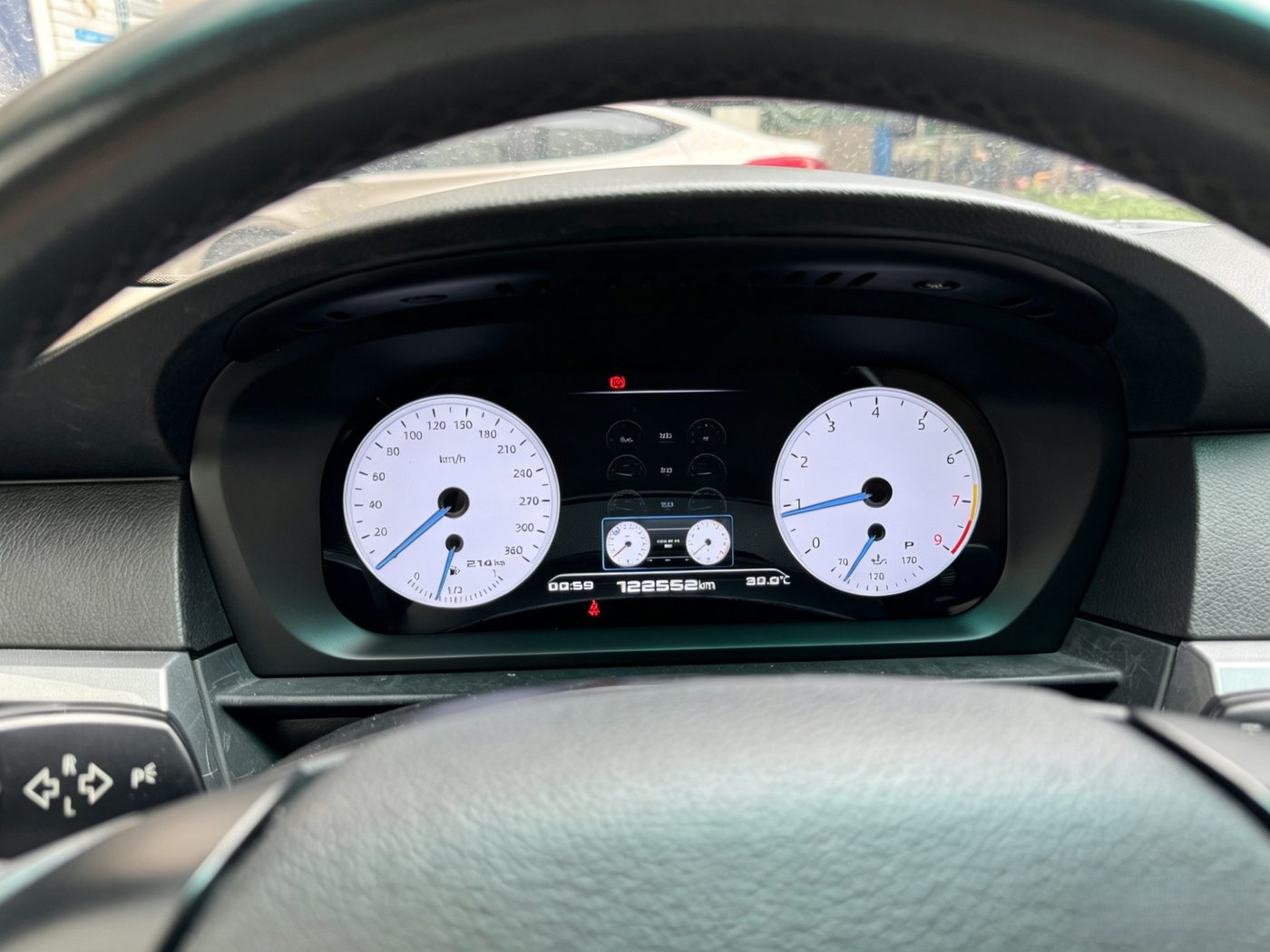

BMW 5 Series E60 (2006-2010)
CCC / CIC · 10.25" · Integrated cluster
Part no. AL-8610

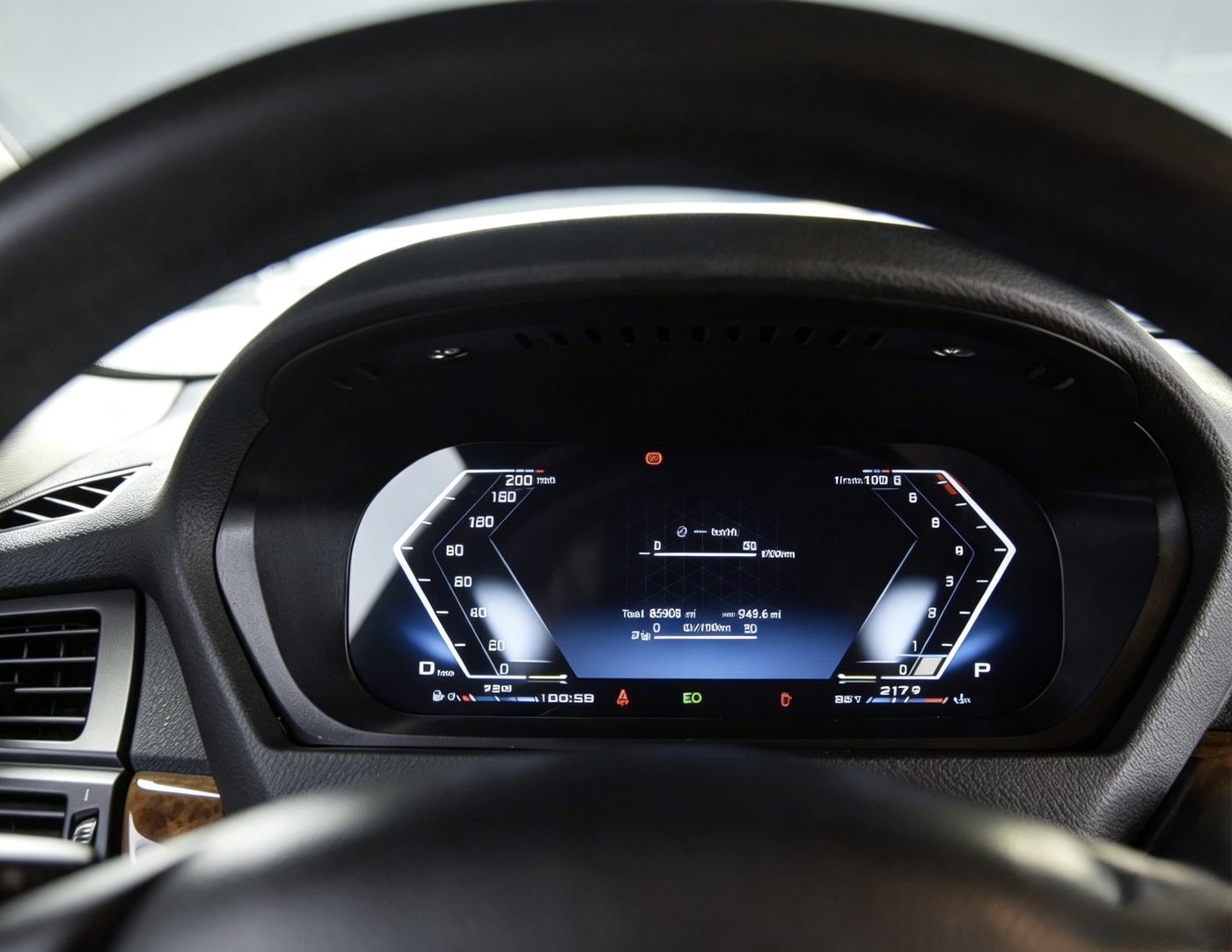

BMW X5 E70 / X6 E71 (2006-2013)
CCC / CIC · 10.25" · Integrated cluster
Part no. AL-8615
Digital cluster for Mercedes-Benz
C-Class, E-Class, GLE, GLS, S-Class and more — NTG4.5 to NTG6, LHD & RHD versions.
| Vehicle | Year | Screen | Part no. | Steering | System |
|---|---|---|---|---|---|
| C-Class W205 AMG (Diesel & Hybrid) | 2015-2018 | 12.3 | FY-0118 | Universal for LHD & RHD | NTG5.0 |
| GLC X253 AMG (Diesel & Hybrid) | 2015-2019 | — | — | Universal for LHD & RHD | — |
| C-Class W205 Diesel & Hybrid | 2019-2021 | 12.3 | — | Universal for LHD & RHD | NTG5.5 |
| GLC X253 Diesel & Hybrid | 2020 | — | — | Universal for LHD & RHD | NTG6.0 |
| GT AMG | 2015-2018 | 12.3 | — | Universal for LHD & RHD | NTG5.0 |
| ML-Class X166 Gasoline | 2012-2015 | 1st Gen 12.3 Floating Style | FY-0129 | Only for LHD | NTG4.5 |
| GL-Class X166 (Gasoline & Diesel) | 2013-2015 | — | — | Only for LHD | NTG4.5 |
| GLE X166 (Gasoline & Diesel) | 2015-2019 | — | — | Only for LHD | NTG5.0 |
| GLS X166 (Gasoline) | 2016-2019 | — | — | Only for LHD | NTG5.0 |
| E-Class W212 (Gasoline) | 2014-2015 | 12.3 | FY-0113 | Only for LHD | NTG4.5 / NTG5.0 |
| E-Class W212 4Dr (RHD, Gasoline) | 2014-2015 | 12.3 | FY-0123 | Only for RHD | NTG4.5 / NTG5.0 |
| E-Class W212 (Gasoline) | 2010-2013 | 12.3 | FY-0153 | Only for LHD | NTG4.0 / NTG4.5 |
| E-Class 2-Door Coupe W207 (Gasoline) | 2009-2013 | 12.3 | FY-0193 | Only for LHD | NTG4.0 / NTG4.5 / NTG5.0 |
| E-Class 2-Door Coupe W207 (Gasoline) | 2014-2016 | — | — | Only for LHD | — |
| CLS-Class W218 (Gasoline) | 2012-2017 | 12.3 | FY-0126 | Only for LHD | NTG4.5 / NTG5.0 |
| V-Class W447 (Gasoline) | 2016-2019 | 12.3 | FY-0158 | Universal for LHD & RHD | NTG5.0 |
| A-Class W176 (Gasoline & AMG) | 2013-2018 | 12.3 | FY-0117 | Universal for LHD & RHD | NTG4.5 / NTG5.0 |
| GLA-Class X156 (Gasoline & AMG) | 2015-2019 | 12.3 | — | Universal for LHD & RHD | NTG4.5 / NTG5.0 |
| CLA-Class X117 (Gasoline & AMG) | 2013-2019 | 12.3 | — | Universal for LHD & RHD | NTG4.5 / NTG5.0 |
| ML-Class X166 Gasoline | 2012-2015 | 2nd Gen,11",OE Recessed(New) | FY-0029 | Universal for LHD & RHD | NTG4.5 |
| GL-Class X166 (Gasoline & Diesel) | 2013-2015 | — | — | Universal for LHD & RHD | NTG4.5 |
| GLE X166 (Gasoline & Diesel) | 2015-2019 | — | — | Universal for LHD & RHD | NTG5.0 |
| GLS X166 (Gasoline) | 2016-2019 | — | — | Universal for LHD & RHD | NTG5.0 |
| ML-Class X166 Gasoline | 2012-2015 | 1st Gen 12.3" Floating | FY-0130 | Only for RHD | NTG4.5 |
| GL-Class X166 (Gasoline & Diesel) | 2013-2015 | — | — | Only for RHD | NTG4.5 |
| GLE X166 (Gasoline & Diesel) | 2015-2019 | — | — | Only for RHD | NTG5.0 |
| GLS X166 (Gasoline) | 2016-2019 | — | — | Only for RHD | NTG5.0 |
Frequently asked questions — digital instrument clusters
Will the digital cluster show the same data as my factory gauges?
Yes. The cluster retains the factory mainboard and synchronises all factory data precisely — mileage, warning lights, fuel and temperature units, and driver-assistance displays. No coding or configuration is required.
Does it work with the factory head-up display (HUD)?
Yes. Clusters support the factory HUD where the car has one. On cars without factory HUD the cluster simply runs without it — no error messages.
Will it trigger warning lights or change my odometer?
No. Because the factory mainboard stays in the loop, the odometer and all warning systems behave exactly as stock. Note: hybrid vehicles are not supported at present.
Which models are covered?
BMW: E60, E70, E89 and the F01–F36 range, with both integrated and non-integrated cluster versions. Mercedes-Benz: C-Class, E-Class, GLE, GLS, S-Class and more on NTG 4.5 to NTG 6, in LHD and RHD.
Can I change the dial design and language?
Yes. 13 selectable languages, 16 UI themes and 21 dial colour / background combinations, plus selectable diesel or petrol rev display. The factory BC button is retained for control.
Need a cluster for a specific car?
Send us the model, year and whether the car has fibre-optic audio or HUD — we confirm the exact model within one business day.
Contact us for detailed product information and pricing
Specifications, packaging and trade pricing are not published online. Send us the models you need and your target volume — we reply with the full specification sheet and wholesale pricing within one business day.
